Tennis

Tennis court dimensionsTennis can be played in a standard 4-court sports hall although normally this is a minority sport in a multi-sports hall so various compromises are necessary to the guidance of the governing body.

We have included some useful drawings for download at the foot of this page:

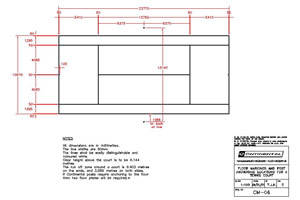

  • Drawing CM-06 – shows the standard markings for a doubles tennis court
  • Drawing CM-27 - shows the anchor locations for Continental's standard indoor tennis posts. These posts must be anchored for use.

Layout and run-off guidance for a tennis court:

All levels
Above the net (mm)
9000
Above the baseline (mm)
5750
Above a point 6.4m behind the baseline (mm)
4000
Length (mm)
23770
Width (mm) 10970
Run-off behind baseline (mm) (min-preferred)
5490-6400
Run-off at the sidelines (mm) (min-preferred)
3050-3660
Categories: Court markings and court dimensions

Downloads

CM-06 - Tennis court dimensions
Court markings and dimensions of a standard tennis court
CM-27 - Tennis post anchor locations
Drawing showing the anchor locations for Continental's indoor tennis posts
