Five-a-side football

Five-a-side court dimensionsTraditionally played using the perimeter of the hall as a rebound wall – the walls are “in-play” so it is normal NOT to mark a perimeter to the court. If the hall is too wide (for example in a 6-court or 8-court hall or larger) then temporary removable “rebound screens” can be used to provide a number of smaller courts.

Technically, the FA requires 80mm thick lines for five-a-side, but traditionally standard 50mm thick lines are marked.

We have included some useful drawings for download in the panel to the right hand side of this page:

  • Drawing CM-03 – shows the standard markings for a five a side court
  • Drawing CM-30 - shows the locations for floor anchors for Continental indoor Five-A-Side goals. Five-a-side goals must be secured when in use. Wall anchors are cheaper and less obtrusive, but in situations where wall anchoring is not possible then the goals must be floor anchored.

Layout and run-off guidance for a five-a-side football pitch:

Community Club Premier International
Minimum height over court (mm)
No prescribed minimum height applies
Length (mm) (min-max)
25000-50000 25000-50000 25000-50000 25000-50000
Width (mm) (min-max)
16500-35000 16500-35000 16500-35000 16500-35000
Out of bounds surround (mm)
N/A – the game is played up to the walls which are “in-play”. If there are areas where the walls are unsafe or irregular (for example recesses or store doors), consideration should be given to installing rebound screens in those areas to provide a safe rebound area





Categories: Court markings and court dimensions

Downloads

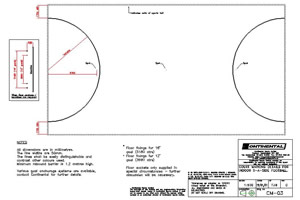

CM-03 - Five-a-side court line marking drawing
Court marking drawing for an indoor five a side football pitch
Five-a-side floor anchor locations
Anchor positions for five a side goals
