Badminton court layout and markings

Badminton court dimensionsThe height requirement for badminton is typically the driver of overall clear height in a sports hall. The 7.5m clear height for club level play (reduced by Sport England from the old requirement of 7.6m) determines the height of most school sports facilities in the UK – and please note this requirement only applies over the courts and not between or behind them.

However, we see many instances where buildings are not designed high enough to result in a 7.5m clear height – for example the depth of services in the roof such as lighting, ventilation and heating can be overlooked as can the depth of stored roof mounted basketball goals and the impact of a lower eaves height on the positioning of cricket netting trackway.

Please contact us for advice on optimum build-height to result in your specified clear height.

We have included various useful drawings in the Downloads section at the foot of this page:

  • Drawing CM-01 – shows the standard badminton court layout
  • Drawing CM-11 – shows anchor point locations for Continental deluxe wheelaway badminton posts if you wish to use the optional floor anchors for those posts (please note those posts are weighted and anchors are not necessary)
  • Drawing CM-29 - shows anchor point locations for Continental standard wheelaway badminton posts if you wish to use the optional floor anchors for those posts (please note those posts are freestanding and anchors are not necessary)
  • Drawing CM-25 - shows socket locations for Continental competition socketed badminton posts

Layout and run-off guidance for a badminton court:

Community Club Premier International
Minimum height over court (mm)
6700 7500 9000 9000
Length (mm)
13400 13400 13400 13400
Width (mm)
6100 6100 6100 6100
Wall from baseline - min (mm)
2000 2000 2000 2000
Wall from baseline with a division net at end of the court - min (mm) 1500 1500 1500 2000
Space between parallel courts - min (mm) 1500 1500 1500 2000
Space between parallel courts with a division net at the side of the court - min (mm) 2400 2600 2600 3000

Note: For Premier / International games, space must be allowed for teams and match officials – however it is likely that for such games a separate badminton-specific roll-out court will be utilised rather than using a floor marked for multi-sports

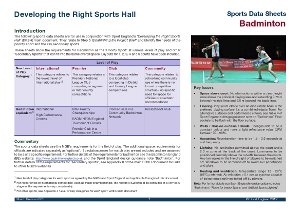

Sport England data sheet

Sport England data sheet - badmintonSport England have released various sport-specific data sheets for key sports in conjunction with the National Governing Bodies. These sheets are intended to be used in conjunction with Sport England’s ‘Developing the Right Sports Hall’. They relate to Step 5 ‘Establishing the Project Brief’ and identify the needs of the priority sport and the key secondary sports. They show the requirements for the ’Priority Sport’ at various levels of play and how other ‘Secondary Sports’ can fit into the same overall space

You can download this data sheet from the Downloads section at the foot of this page.

Categories: Court markings and court dimensions

Downloads

Sport England Data Sheet - Badminton
Details of Sport England requirements for badminton as a priority sport in a multi-sport sports hall
CM-01 - Badminton court line marking drawing
Court marking drawing showing dimensions of a standard badminton court
CM-11 - Anchor positions for competition wheelaway badminton posts
Anchor point locations for Continental competition wheelaway badminton posts. These posts are weighted and anchors are optional, not necessary.
CM-29 - Anchor positions for standard badminton posts
Anchor point locations for Continental standard wheelaway badminton posts. Please note those posts are freestanding and anchors are optional, not necessary.
CM-25 - socketed badminton post socket locations
Socket locations for Continental competition socketed badminton posts
